Ultrasonic Testing

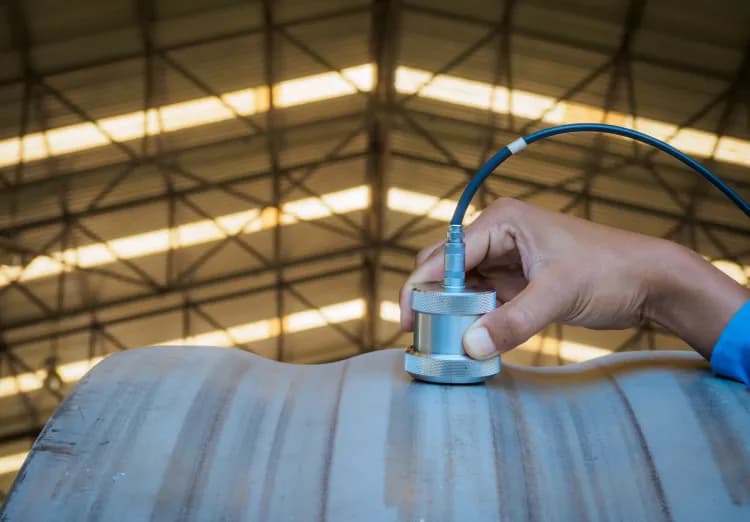

Ultrasonic testing is an acoustic method for detecting material defects. Many components can also be inspected in their installed state, e.g. the support elements of an aircraft.



Ultrasonic testing is based on the fact that sound waves propagate at different speeds in different media.



The changes in acoustic properties at interfaces (e.g. blowholes, inclusions, cracks) inside the part to be inspected reflect the sound pulse. Based on the measured time difference, a signal image is generated and visualized on a monitor. Based on this image, the position, size and direction of expansion of the indication can be calculated.

Scope

  • Weld seam testing
  • Wall thickness measurement
  • Sheet metal testing
  • Forging inspection

Ihre Advantages

  • Mobile
  • Can be automated
  • Good reproducibility
